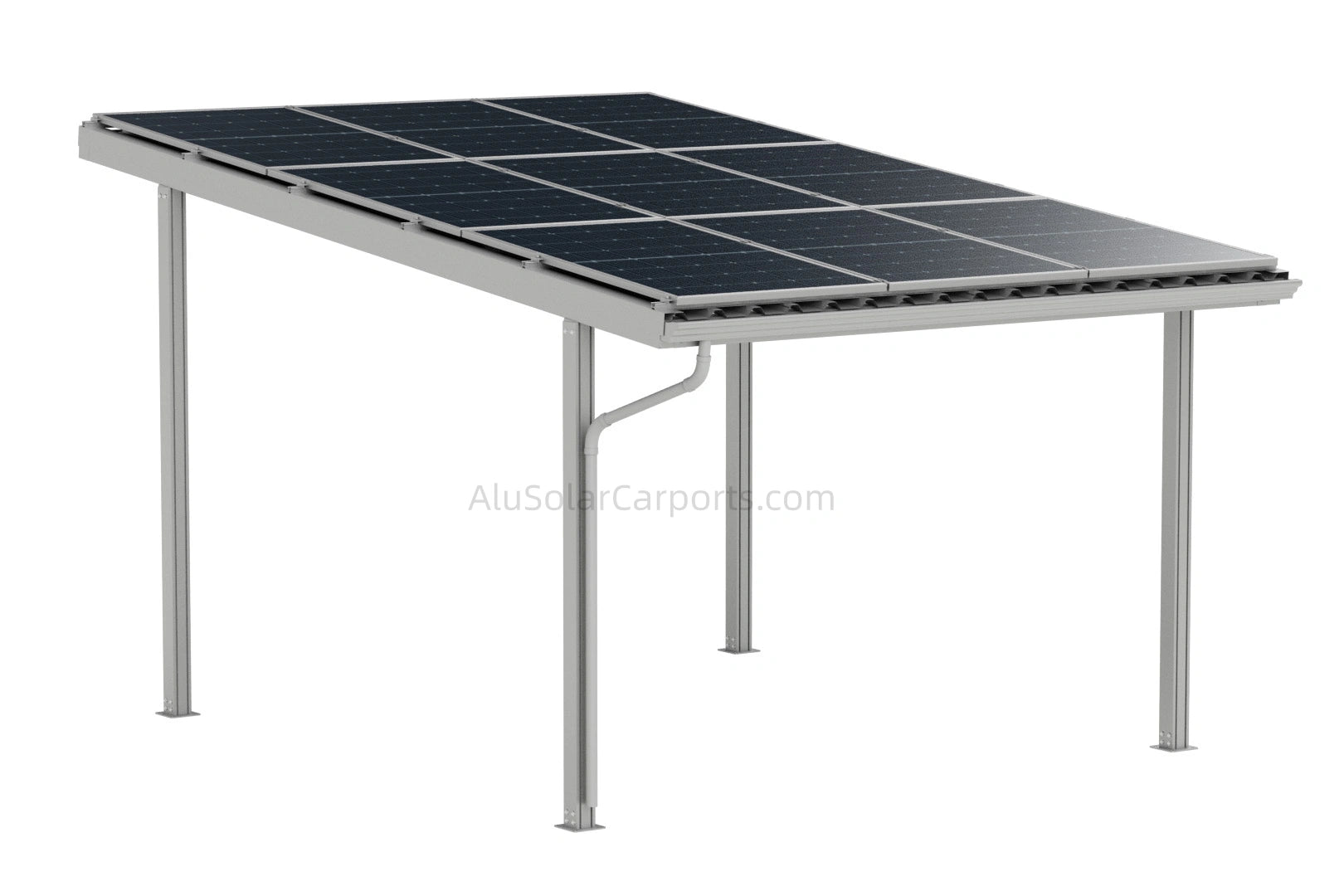

Single Solar Carport S1

Integrated Single Solar Carport Power Station | 6.6 kWp Modular Aluminum Structure

1. Product Overview

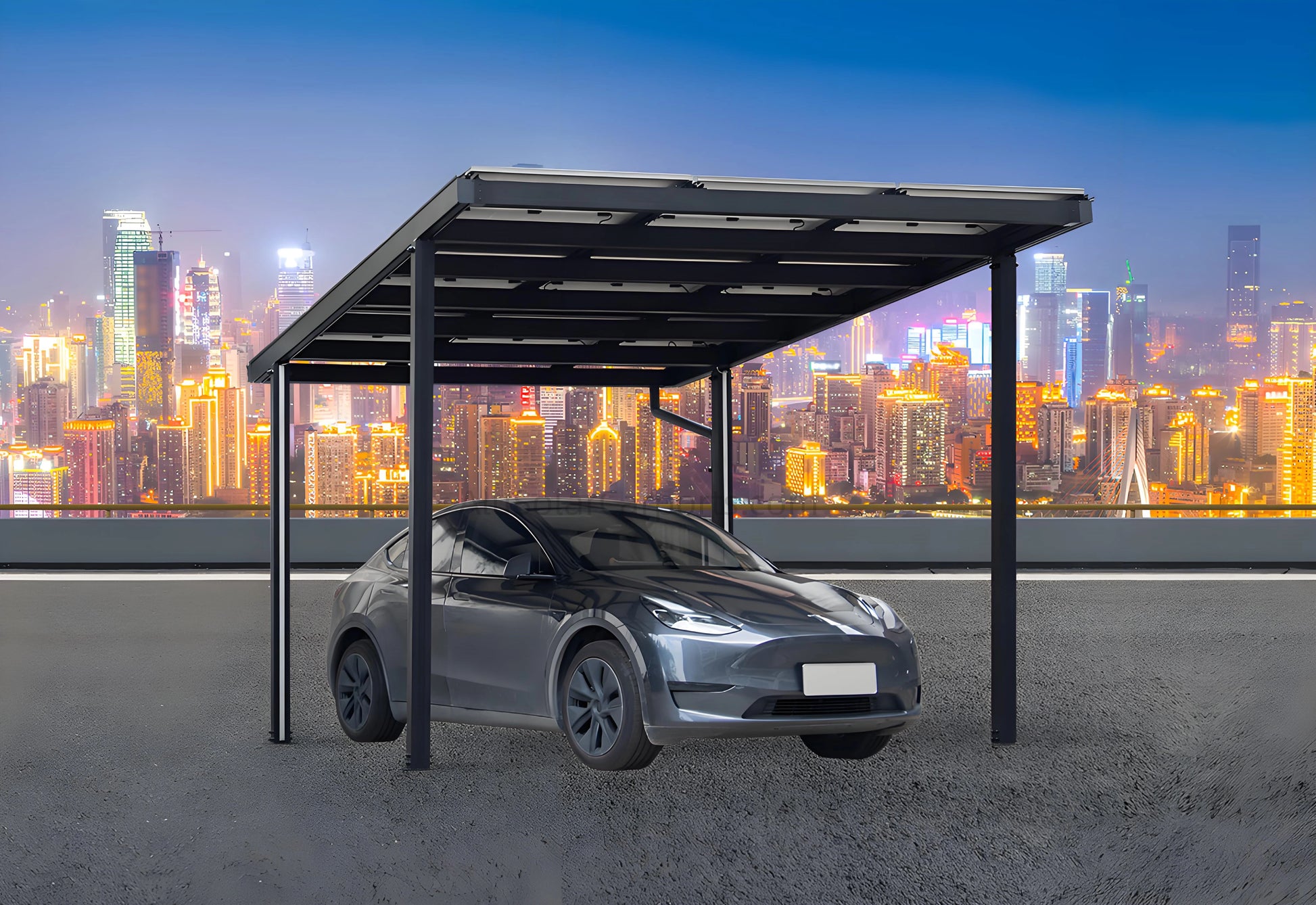

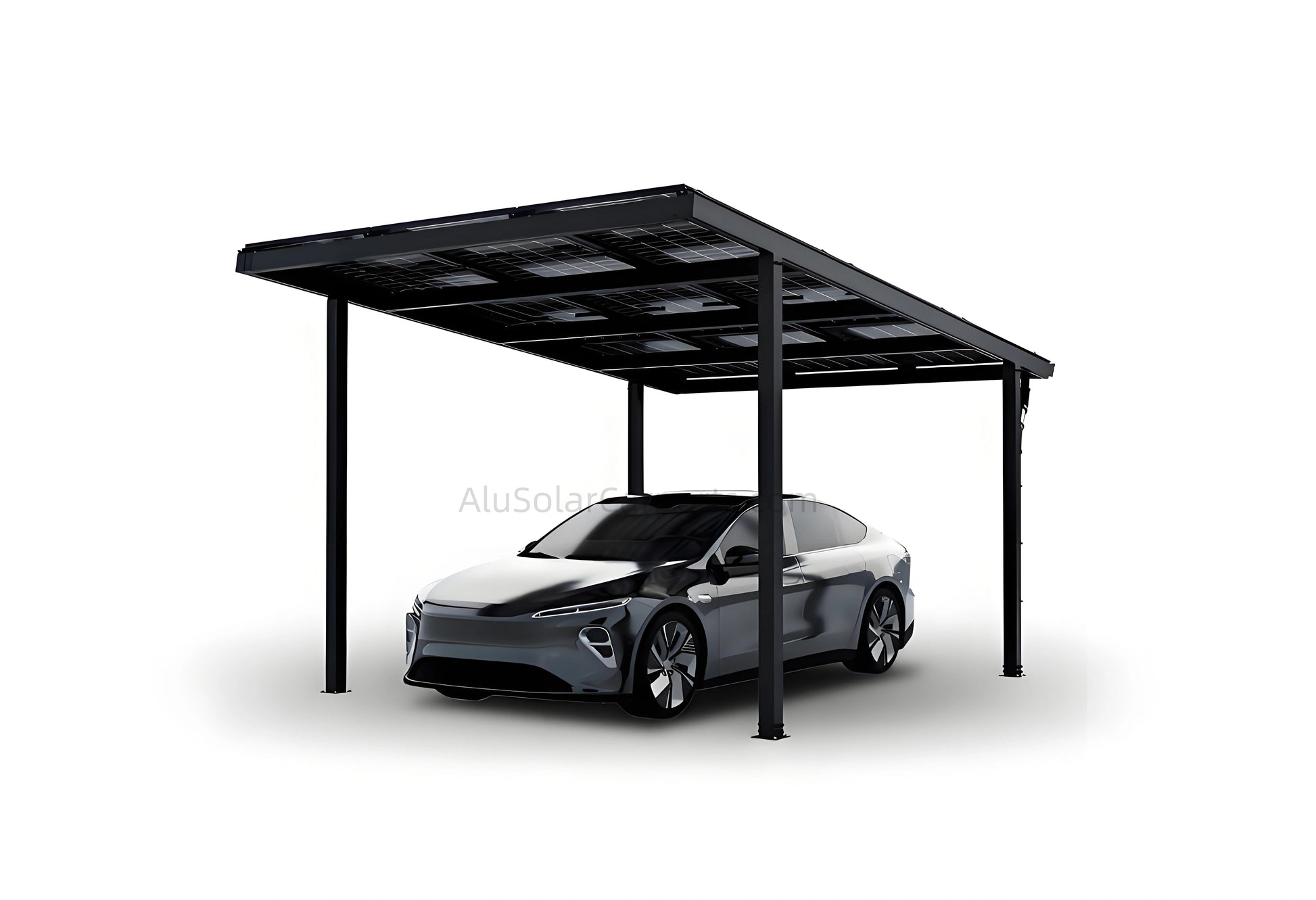

Maximize your property’s potential with our Integrated Single Solar Carport. This premium energy solution is engineered to provide high-performance vehicle protection while generating clean, renewable power. Featuring a sleek RAL7016 Anthracite Grey powder-coated aluminum frame, it combines architectural beauty with industrial durability, making it the perfect addition to any modern driveway.

2. Effortless Installation: Designed for the Smart Homeowner

We have revolutionized the assembly process to ensure that setting up your energy station is as efficient as the power it generates.

• Rapid 2-Person Assembly: Our intelligent design allows just two people to fully assemble the structure with basic manual tools.
• True Plug-and-Play System: Thanks to comprehensive step-by-step instructions and a complete hardware kit, no additional materials or specialized construction equipment are required.
• Simple Setup, Professional Finish: You handle the structural assembly quickly and easily; only the final electrical connection requires a certified professional.

3. Key Features & Performance

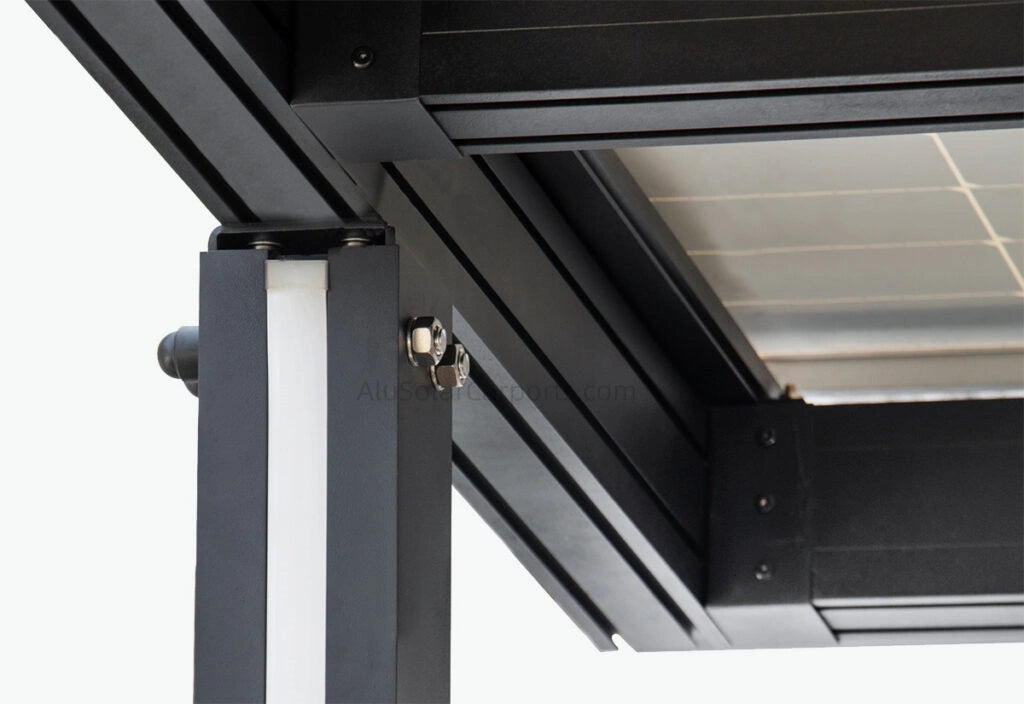

• Aviation-Grade Aluminum: Built with a high-strength, powder-coated frame that is corrosion-resistant and guaranteed against discoloration.
• Extreme Weather Resilience: Engineered to withstand wind speeds of 33 m/s and snow loads of 1.1 Kpa, ensuring total peace of mind in harsh climates.

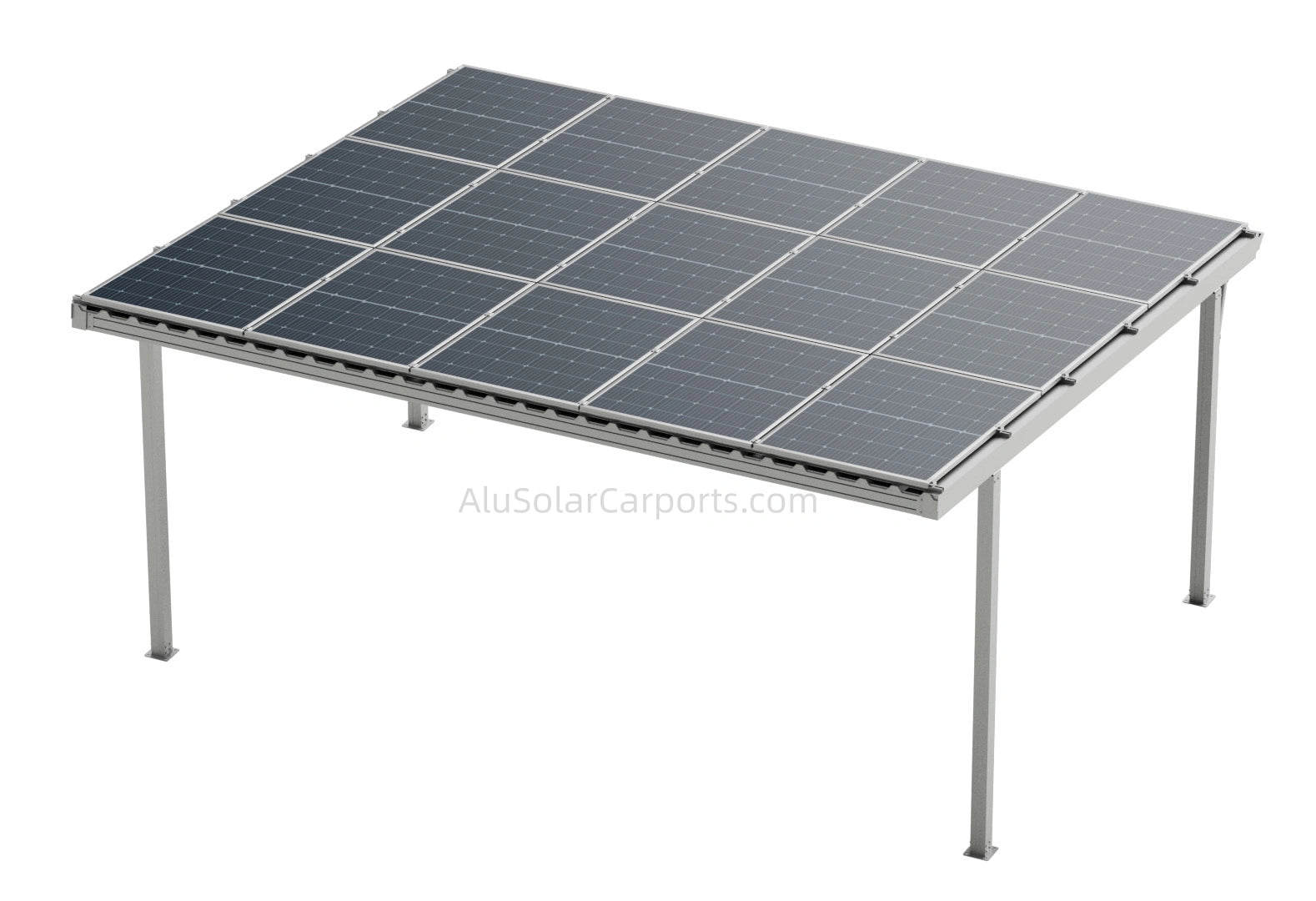

• Modular Scalability: The single-car unit features a modular design, allowing for seamless expansion to multiple parking spaces in the future.

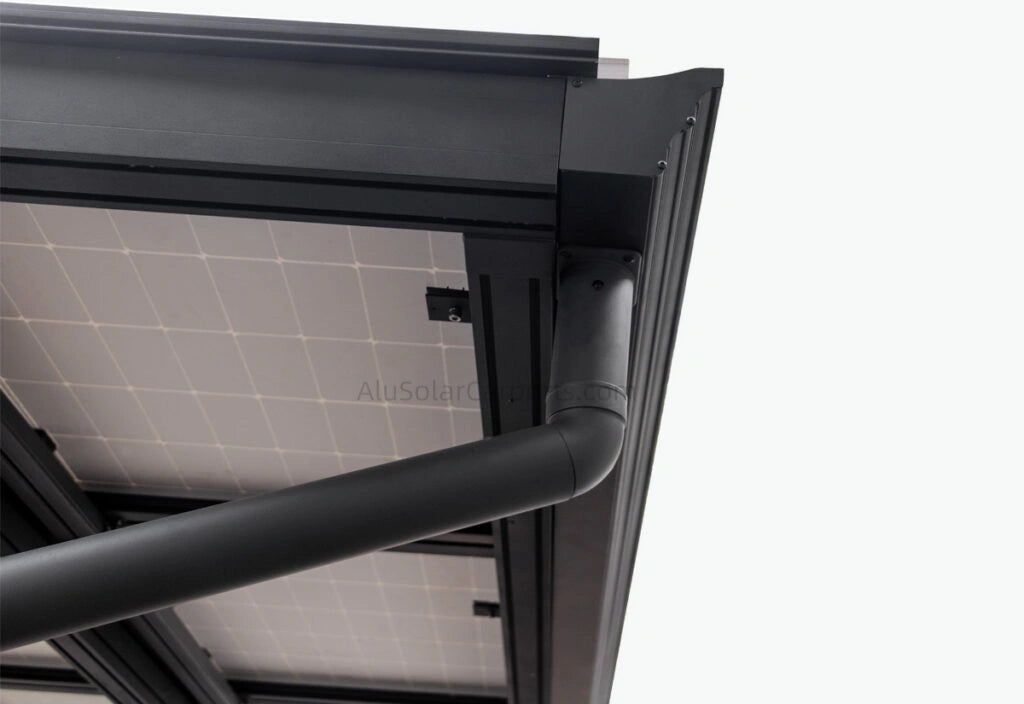

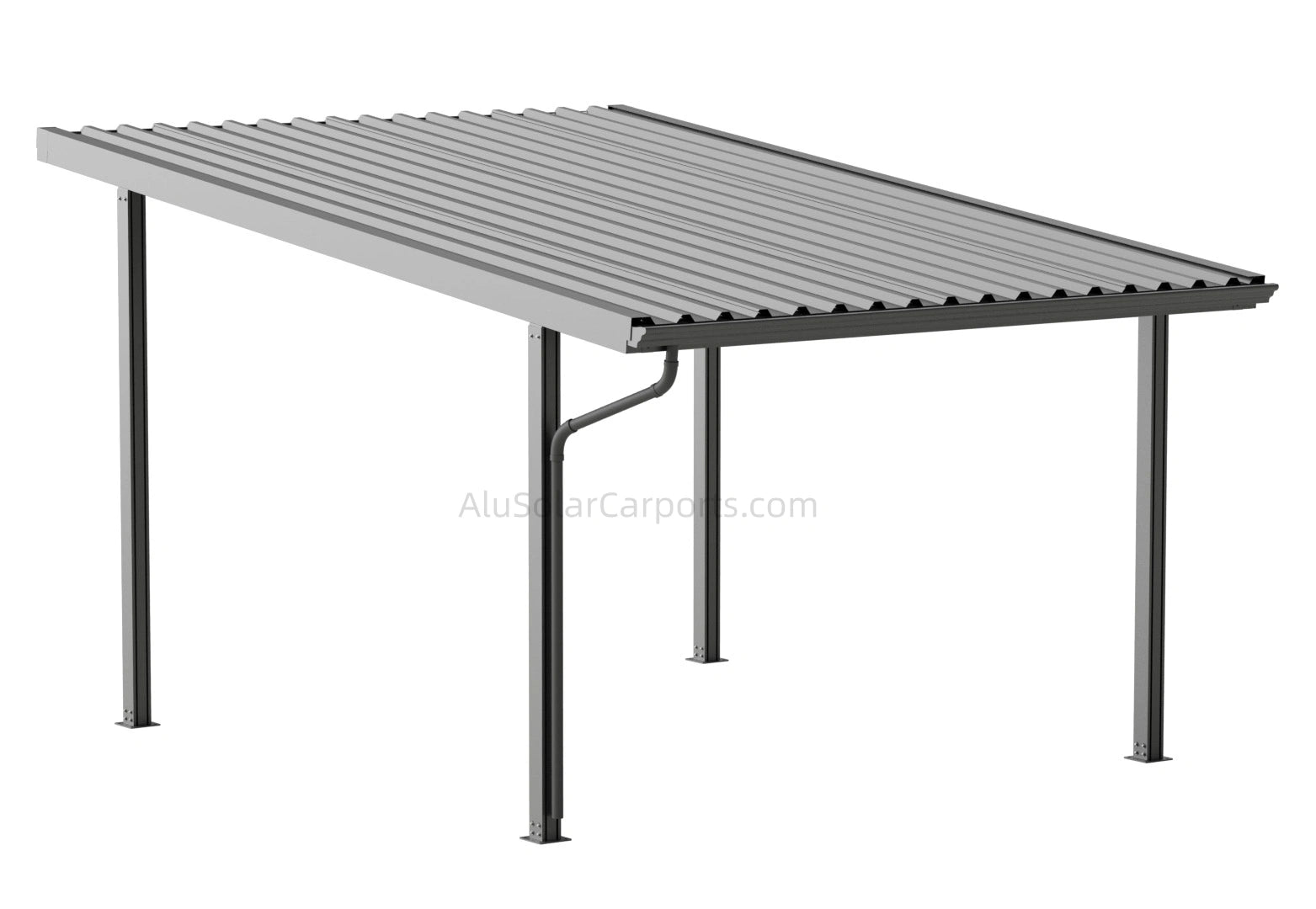

• Advanced Water Management: Includes a 6° pitched roof with an integrated rain gutter and downpipe system to keep your vehicle and charging area 100% dry.

4. Technical Specifications

Performance & Capacity

• System Capacity: 6.6 kWp Total Power

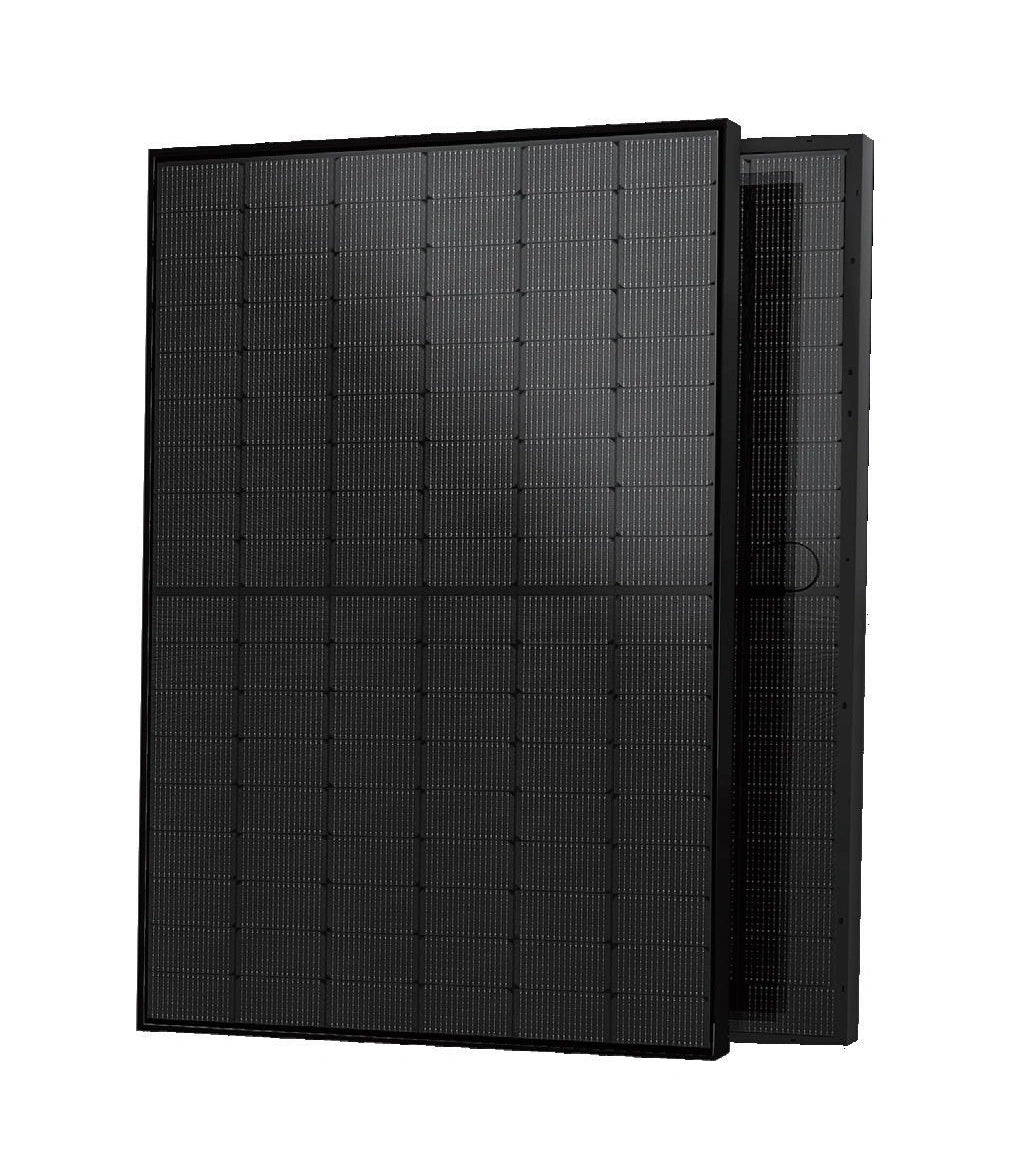

• Solar Configuration: Up to 9 High-Efficiency Modules(440 Wp each)
• Module Dimensions: 1722mm x 1134mm x 30mm(67.8in x 44.65in x 1.18in)
• Total Output Power: 5 kW

Structural & Load Resilience

• Roof Pitch: 6°
• Wind Load Resistance: 33 M/S
• Snow Load Capacity: 1.1 Kpa
• Maximum Roof Load: 1,898 lb / ft²
• Operating Temperature: -40 °F to 185 °F (-40 °C to 85 °C) Protection Class: IP68 (Outdoor application)

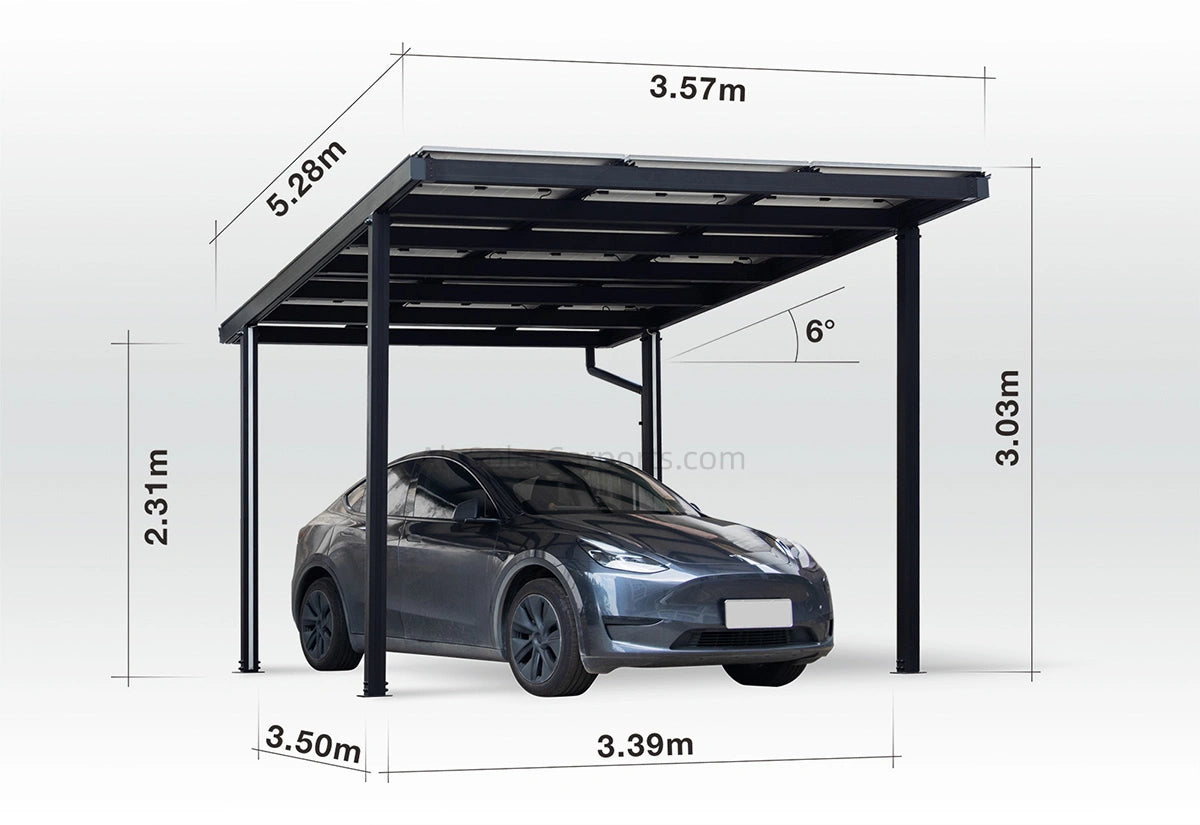

Dimensions & Physical Attributes

• Structural Design: Single-car capacity with 4-side open access
• Roof area: 140.5 in (Width) x 207.8 in (Depth)
• Clearance Height: 87 in
• Entry Height: 104 in
• Total Weight: 211 kg (Approx. 1,009.7 lbs)

Materials & Finish

• Primary Material: Heavy-Duty Aluminum Alloy
• Available Colors: RAL7016 Anthracite Grey

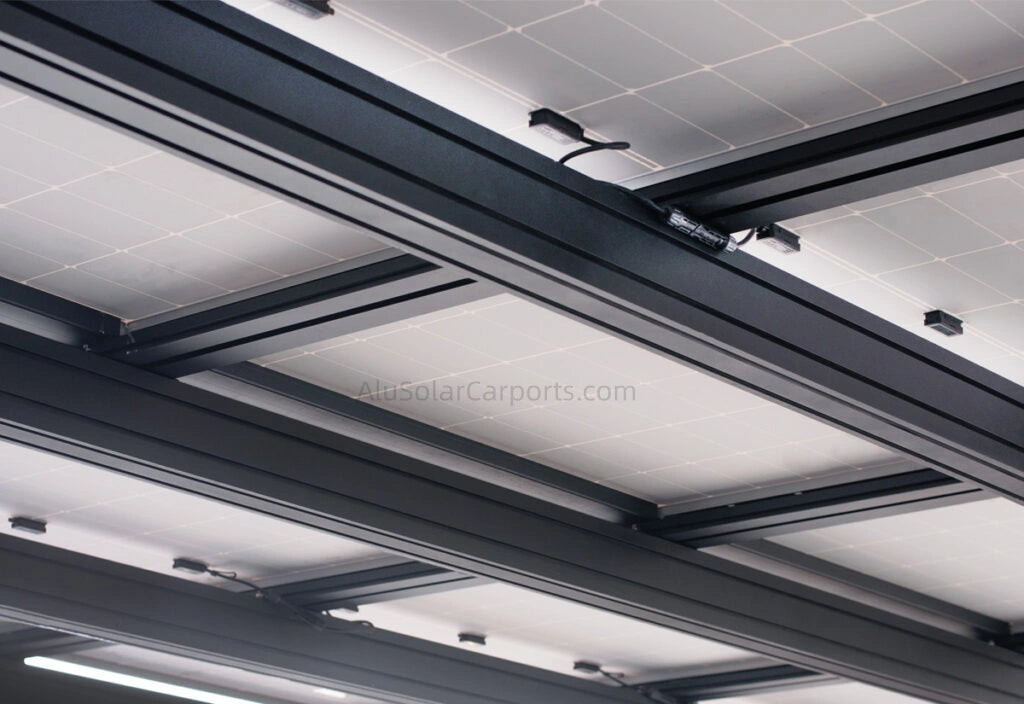

• Included Components: Full frame, PV substructure, integrated gutters, and downpipes

Note: The system is delivered unassembled and is specifically optimized for high-efficiency outdoor energy generation.

5. Full-Service Support: From Planning to Commissioning

We don’t just sell a product; we provide a complete energy ecosystem. Our team supports you through every stage of your transition to green energy:

• Consultation & Planning: Personalized advice and professional structural planning tailored to your site.
• Professional Installation: Expert guidance for DIY assembly or full-service installation options.
• Optional Upgrades: We offer perfectly matched inverters, EV Wallboxes (Charging Stations), and battery storage systems to complete your power station.

6. Get Started Today

Take the first step toward energy independence. Contact us today for a non-binding consultation and quote. Discover how our Single Solar Carport can turn your parking space into a high-yield power plant.
